Nitrogen Compound Instruments - NOx, NO, NO2, NH3

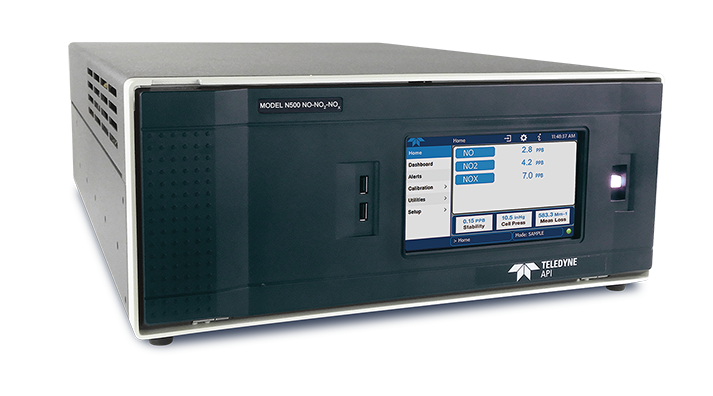

N500 CAPS True NO2-NOx-NO Analyzer    Get Quote

The Model N500 CAPS NOx analyzer uses superior Cavity Attenuated Phase Shift (CAPS) Spectroscopy to measure True NO2, NOX, and NO gases. The instrument combines direct NO2 measurements with highly efficient gas phase titration (GPT) to convert and measure the NO gas component. An automatic baseline reference cycle accounts and compensates for any potential baseline drift due to varying environmental conditions. CAPS technology is inherently accurate and sensitive, uses very little power, and requires far less maintenance than Chemiluminescence. The Model N500 CAPS raises the bar for NO2, NOX, and NO measurement accuracy, while simultaneously reducing instrument operation and maintenance costs.
Ranges: Min: 0 - 5 ppb, Max: 0 - 1,000 ppb.  Learn More

N500 CAPS True NO2-NOx-NO Analyzer    Get Quote

The Model N500 CAPS NOx analyzer uses superior Cavity Attenuated Phase Shift (CAPS) Spectroscopy to measure True NO2, NOX, and NO gases.
Ranges: Min: 0 - 5 ppb, Max: 0 - 1,000 ppb.  Learn More

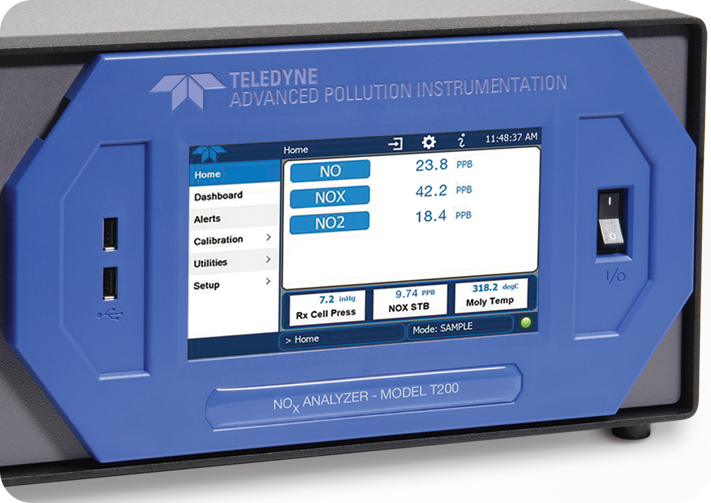

T200 - NOx Analyzer    Get Quote

The Model T200 NO/NO2/NOx analyzer uses the proven chemiluminescence detection principle, coupled with state-of-the-art electronics to allow accurate and dependable low level measurements for use as an ambient analyzer or dilution CEMS monitor. A unique AutoZero feature provides superb stability by continuously correcting for zero drift, while advanced Adaptive Filtering allows the analyzer to optimize performance under changing conditions.
Ranges: 0-5 ppb to 0-20 ppm.  Learn More

T200 - NOx Analyzer    Get Quote

The Model T200 NO/NO2/NOx analyzer uses the proven chemiluminescence detection principle, coupled with state-of-the-art electronics to allow accurate and dependable low level measurements for use as an ambient analyzer or dilution CEMS monitor.
Ranges: 0-5 ppb to 0-20 ppm.  Learn More

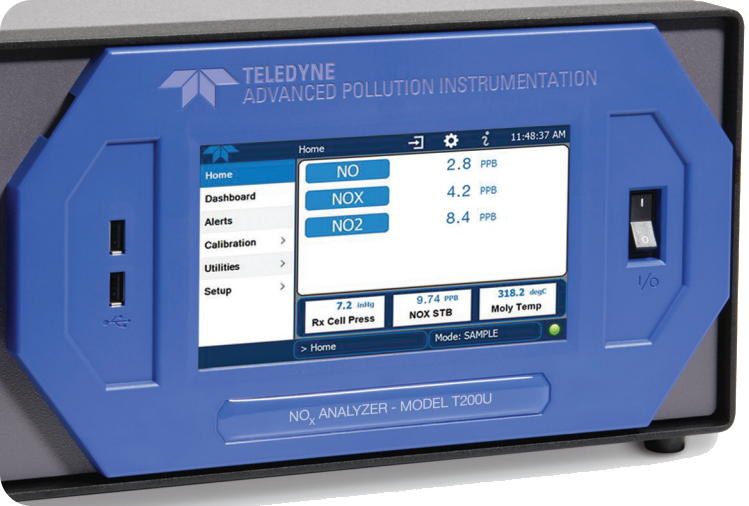

T200U - NOx Analyzer     Get Quote

The Model T200U trace-level NO/NO2/NOx analyzer has been developed specifically to address the challenges of low level monitoring as required, for example, in the US NCore network. It uses the proven chemiluminescence principle and is designed to allow ultra-sensitive measurements with a lower detectable limit of 50 ppt while still meeting the requirements for use as a US EPA compliance analyzer.
Ranges: 0-5 ppb to 0-2000 ppb.  Learn More

T200U - NOx Analyzer    Get Quote

The Model T200U trace-level NO/NO2/NOx analyzer has been developed specifically to address the challenges of low level monitoring as required, for example, in the US NCore network.
Ranges: 0-5 ppb to 0-2000 ppb.  Learn More

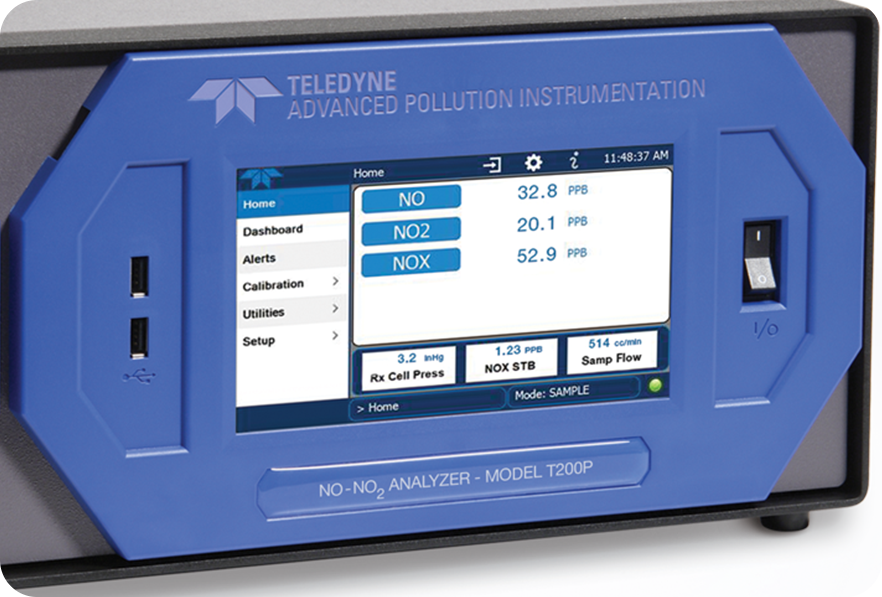

T200P - NOx Analyzer    Get Quote

The Model T200P provides measurements of NO and NO2 using our Model T200 NOx analyzer combined with a patented high efficiency photolytic converter. Even low temperature molybdenum converters transform other nitrogen-containing compounds such as HNO3, PAN, etc. to a considerable extent. Simultaneous measurements of NO2 performed with molybdenum and photolytic converters have shown significantly different results in the presence of such compounds.
Ranges: Min: 0 - 50 ppb, Max: 0 - 4,000 ppb.  Learn More

T200P - NOx Analyzer    Get Quote

The Model T200P provides measurements of NO and NO2 using our Model T200 NOx analyzer combined with a patented high efficiency photolytic converter. Even low temperature molybdenum converters transform other nitrogen-containing compounds such as HNO3, PAN, etc. to a considerable extent.
Ranges: Min: 0 - 50 ppb, Max: 0 - 4,000 ppb.  Learn More

T200UP - NOx Analyzer    Get Quote

The Model T200UP provides trace level measurements of NO and NO2 using our Model T200 NOx analyzer combined with a patented high efficiency photolytic converter. Even low temperature molybdenum converters transform other nitrogen-containing compounds such as HNO3, PAN, etc. to a considerable extent. Simultaneous measurements of NO2 performed with molybdenum and photolytic converters have shown significantly different results in the presence of such compounds.
Ranges: Min: 0 - 5 ppb, Max: 0 - 2,000 ppb.  Learn More

T200UP - NOx Analyzer    Get Quote

The Model T200UP provides measurements of NO and NO2 using our Model T200 NOx analyzer combined with a patented high efficiency photolytic converter. Even low temperature molybdenum converters transform other nitrogen-containing compounds such as HNO3, PAN, etc. to a considerable extent.
Ranges: Min: 0 - 5 ppb, Max: 0 - 2,000 ppb.  Learn More

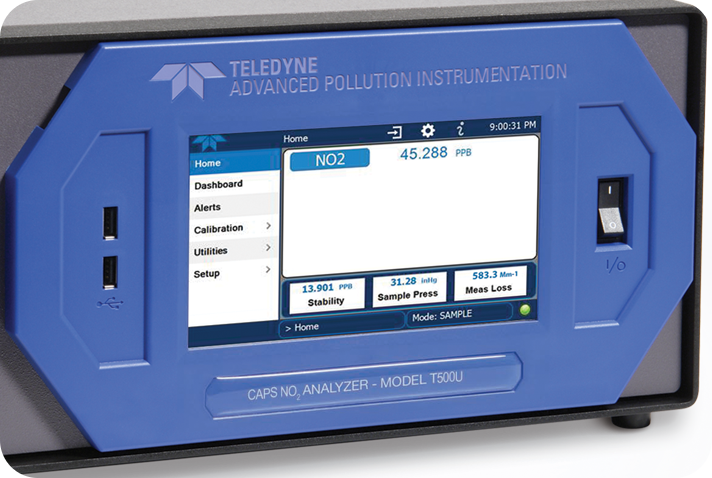

T500U - NO2 Analyzer    Get Quote

The T500U - NO2 Analyzer represents the next generation of criteria pollutant monitoring technology for the direct measurement of Nitrogen Dioxide (NO2) in air. The instrument utilizes a patented Cavity Attenuated Phase Shift (CAPS) technique to provide an extremely sensitive, fast and accurate NO2 measurement in a cost effective and low maintenance instrument package.
Ranges: 0-5 ppb / 0-1,000 ppb.  Learn More

T500U - NO2 Analyzer    Get Quote

The T500U - NO2 Analyzer represents the next generation of criteria pollutant monitoring technology for the direct measurement of Nitrogen Dioxide (NO2) in air.
Ranges: 0-5 ppb / 0-1,000 ppb.  Learn More

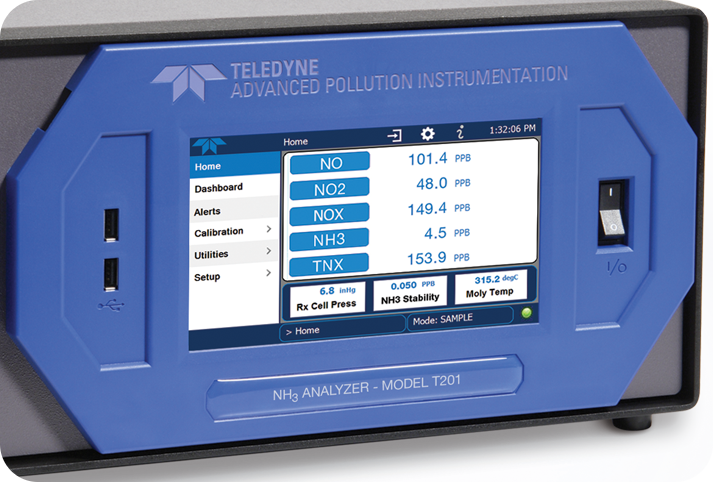

T201 - NH3 Analyzer    Get Quote

The Model T201 combines a specially configured chemiluminescence analyzer with an external thermal converter to give stable and repeatable NH3 measurements at very low levels. In addition, the T201 provides simultaneous values for NO, NO2, and NOx concentrations. The T201 is ideal for trace ammonia monitoring applications in ambient air as well as in clean rooms and make-up air units. Optional zero and span valves allow automatic, unattended calibration checks.
Ranges: 0-50 ppb to 0-2000 ppb.  Learn More

T201 - NH3 Analyzer    Get Quote

The Model T201 combines a specially configured chemiluminescence analyzer with an external thermal converter to give stable and repeatable NH3 measurements at very low levels. In addition, the T201 provides simultaneous values for NO, NO2, and NOx concentrations.
Ranges: 0-50 ppb to 0-2000 ppb.  Learn More

T200M - NOx Analyzer    Get Quote

The Model T200M midrange analyzer combines the proven chemiluminescence principle with a number of innovative features to provide reliable and repeatable NO, NO2, and NOx measurements for extractive type CEM systems. The option of either a molybdenum converter or a high-efficiency stainless steel thermal NO2 converter allows the T200M to be used in a variety of extractive CEM systems, from gas turbines to coal-fired boilers.
Ranges: 0-1 ppm to 0-200 ppm.  Learn More

T200M - NOx Analyzer    Get Quote

The Model T200M midrange analyzer combines the proven chemiluminescence principle with a number of innovative features to provide reliable and repeatable NO, NO2, and NOx measurements for extractive type CEM systems.
Ranges: 0-1 ppm to 0-200 ppm.  Learn More

T200H - NOx Analyzer    Get Quote

The Model T200H combines the proven chemiluminescence principle with a number of innovative features to provide reliable and repeatable NO, NO2, and NOx measurements for extractive type CEM systems. A high-efficiency stainless steel thermal NO2 converter provides durable and consistent operation under the harshest conditions (other converter options also available). The T200H may be fitted with an optional, internal paramagnetic O2 sensor or an infrared absorption CO2 sensor, reducing integration and operating costs significantly.
Ranges: 0-5 ppm to 0-5000 ppm.  Learn More

T200H - NOx Analyzer    Get Quote

The Model T200H combines the proven chemiluminescence principle with a number of innovative features to provide reliable and repeatable NO, NO2, and NOx measurements for extractive type CEM systems. A high-efficiency stainless steel thermal NO2 converter provides durable and consistent operation under the harshest conditions (other converter options also available).
Ranges: 0-5 ppm to 0-5000 ppm.  Learn More
