XC-6000EM MercSampler™ Console    Get Quote

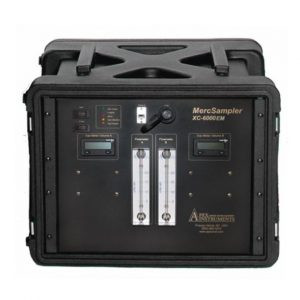

The XC-6000EM MercSampler™ meter console captures all data necessary for paired sorbent trap sampling in accordance with PS 12B or Method 30B by simplifying sampling requirements through the automation of data acquisition, sample flow adjustments, leak checks, calculations, temperature control, and calibrations. Data is easily transferred to a Windows based PC through Ethernet and can be monitored remotely through modbus connectivity. The meter console controls the sample flow rate proportional to the stack flow rate and determines the standardized volume extracted through each sorbent trap.  Learn More

XC-30B MercSampler™ Console    Get Quote

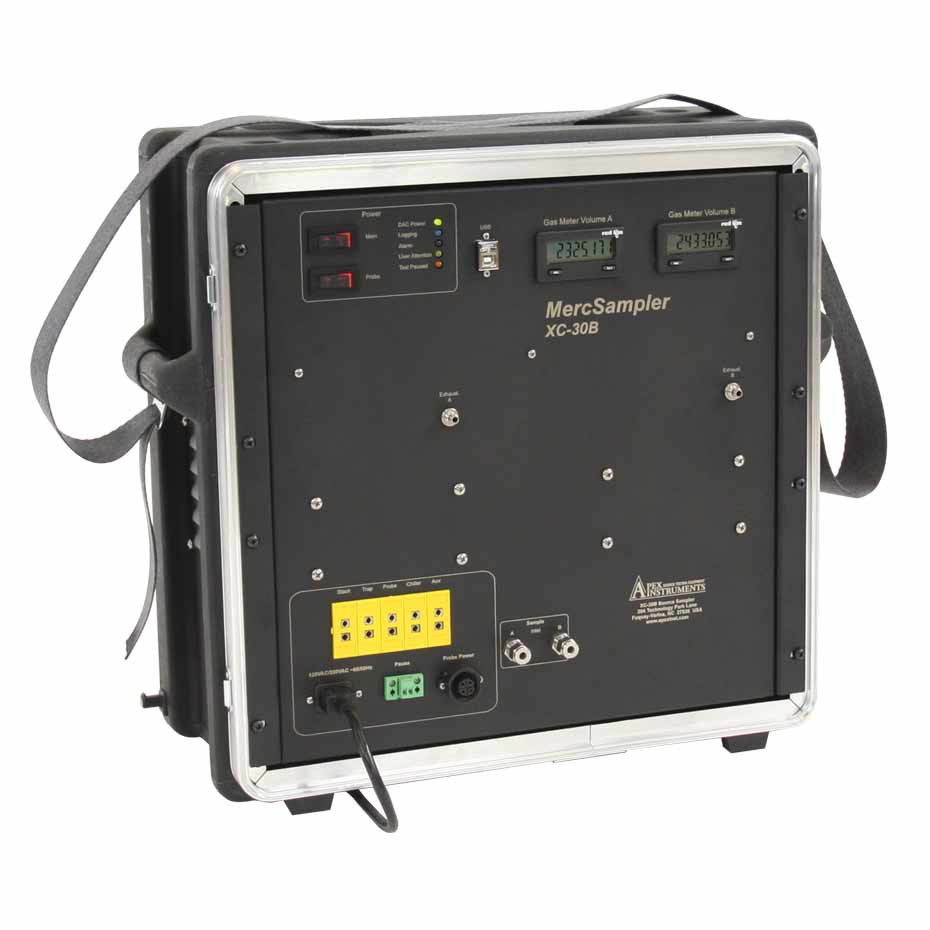

The XC-30B MercSampler™ Console, designed especially for performing Method 30B, simplifies sampling requirements by automating data acquisition, sample flow adjustments, leak checks, calculations, temperature control, and calibrations. Data is easily transferred to a Microsoft Windows Based PC through USB Interface. The XC-30B MercSampler™ performs dual sorbent trap sampling at flow rates up to 2.0 lpm and can be operated with your choice of probes and gas conditioning systems, including our popular SGC-4000HGP Stirling Gas Conditioner.  Learn More

XD-502 Source Sampling Console    Get Quote

The new XD-502 Digital Source Sampling Console is the first Method 5 console being offered in our new compact light weight design. The console uses an internal diaphragm pump, reducing the weight of the console and pump portion of the train to 37lbs, from 90 lbs (more than 50% reduction). Additionally, we’re including our new multi-function sunlight-readable transflective display. With quick and easy menu navigation to access and control sampling operations such as auditing and calibrating, this digital console is the best choice for a portable and easy-to-use alternative to the traditional Method 5 Console.  Learn More

XC-623 Source Sampling Console    Get Quote

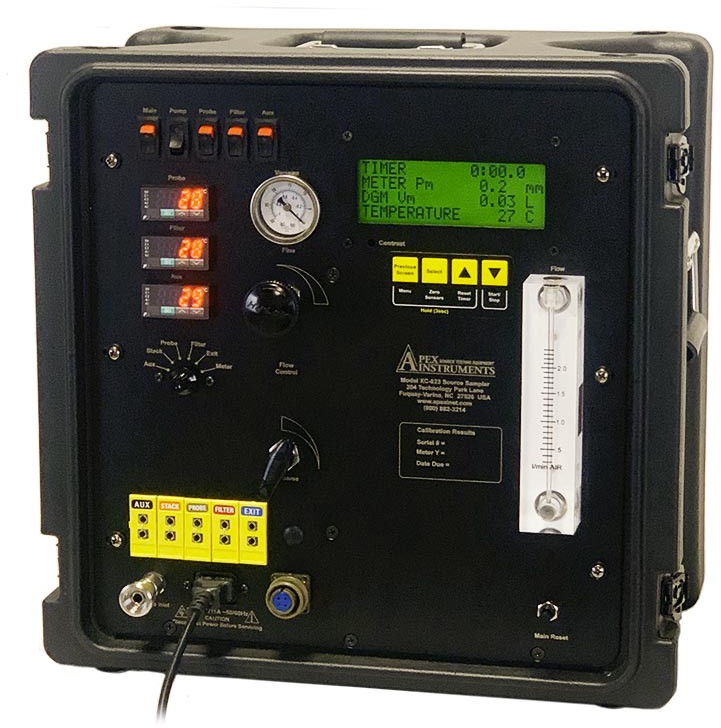

Using different configurations of sampling trains, the XC-623 console can be used to test for sulfur dioxide, carbon dioxide, TRS (total reduced sulfur), methanol and an ever-increasing group of other pollutants. These include EPA Method 6, Method 4, and other methods.  Learn More

XC-260 Manual Mercury Sampling Console    Get Quote

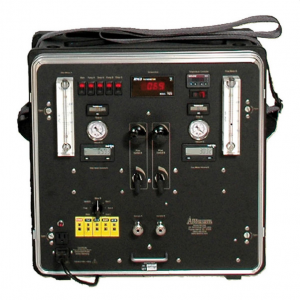

The Apex XC-260 Manual Source Sampler is a low-price, portable, field-proven meter console that is easy to use, and ideal for sampling mercury emissions based on CFR 40, Part 60, Method 30B. The heart of the Apex Instruments manual system is the XC-260 Source Sampler, a precision meter console used for collecting Hg emissions. The average mercury concentration for the sampling period is determined by using the sample volumes measured by the dry gas meters and the results of the sorbent trap analysis.  Learn More

Mercury Sampling Probes, Sorbent Traps...    Get Quote

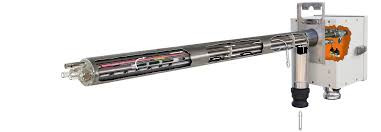

Apex Heated Mercury Sorbent Trap Probes are designed to accept a pair of standard 10 mm O.D. sorbent traps. The sorbent traps are placed at the probe inlet to prevent Hg transport losses during sampling. The traps are sealed in place with compression fittings using glass-filled PTFE ferrules. The probe is constructed from corrosion resistant tubing; the outer sheath is 2" O.D. and the inner liners are 1/2". Hastelloy is recommended for XC-6000 applications due the constant exposure to possible corrosive stack environments. Stainless steel probes are available for short term testing such as method 30B applications   Learn More

SK-0031 SuperVOST Sampling Kit    Get Quote

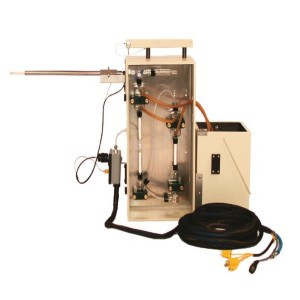

The Apex Instruments SuperVOST Sampling Kit includes the multifunctional VersaCase2 cabinet with a redesigned mounting panel, glass-lined probe assembly, VOST glassware with clamps, insulated coolant reservoir with submersible pump and VU-cord. The VU-cord can be used for connection directly to the Model 623 Source Sampler Console, or to Models 572 and 563 with the VUA orifice flow adapter.  Learn More

SK-626 - Method 26 Extension Kit for VersaCase    Get Quote

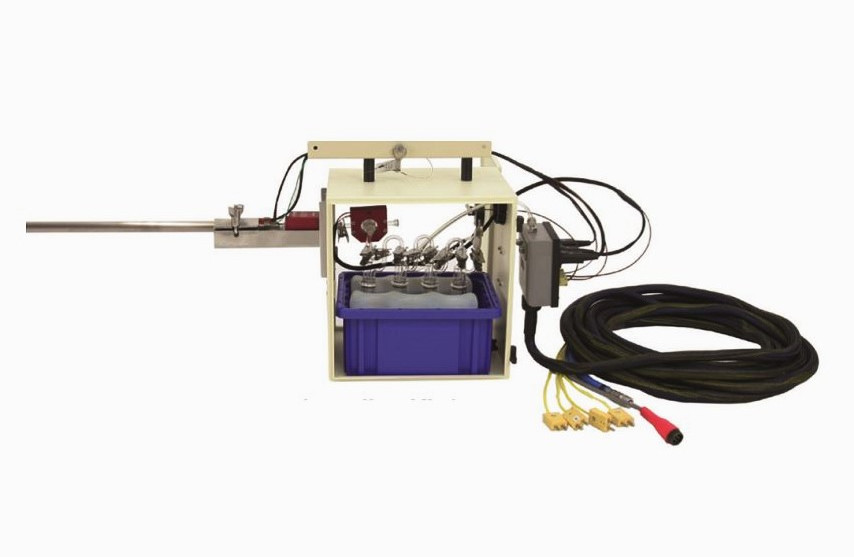

The Method 26 (Hydrogen Halides, Halogens) Extension Kit for VersaCase (SK-626) is required for modification of the Method 6 Source Sampling Kit (SK-606) in order to perform Method 26. The sample is passed through a pre-purged heated probe and filter into dilute sulfuric acid then dilute sodium hydroxide solutions which collect all the gaseous hydrogen halides and halogens, respectively. The filter collects particulate matter including halide salts but is not routinely recovered and analyzed. The separate solutions are analyzed by ion chromatography.  Learn More

SK-M180 VacBag Sampler System    Get Quote

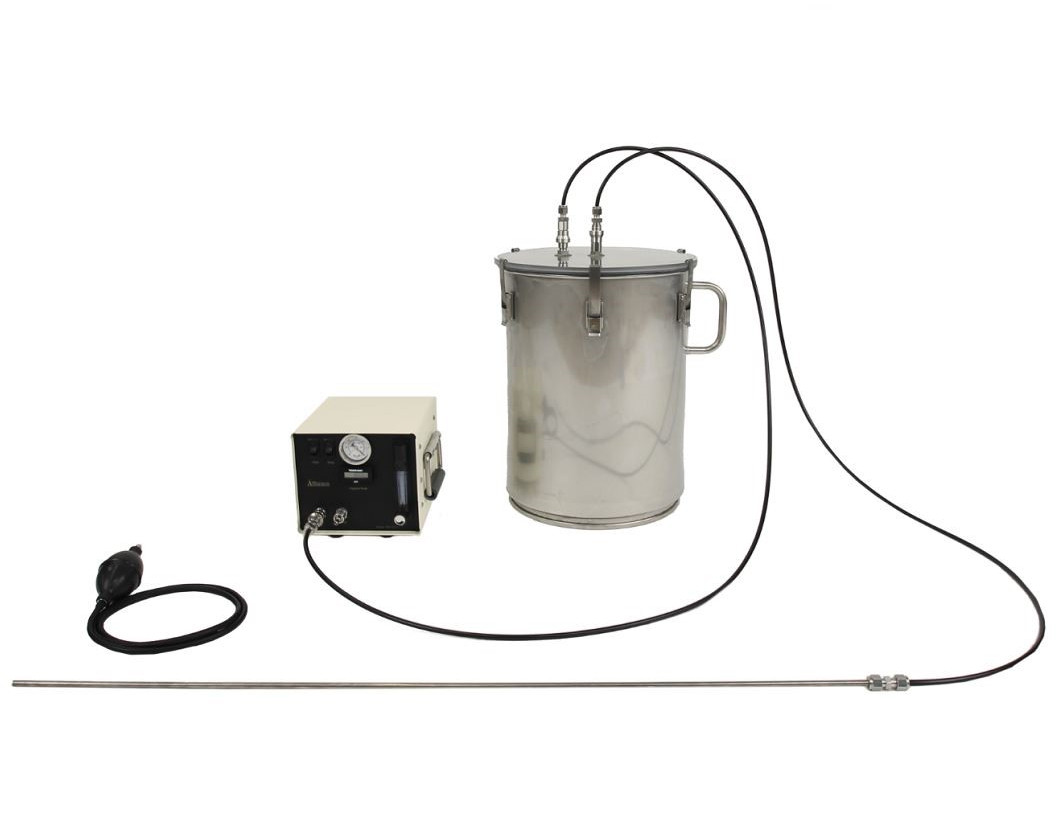

The M180 VacBag Sampler System takes an integrated gas sample, in accordance with the U.S. EPA Method 18, by evacuating the stainless steel airtight container fitted with a Tedlar® gas sampling bag, preventing the gas sample from coming into contact with the sample pump. The TBE Enclosures come standard with clear Lexan® lid, a 1/4" valved female quick connect and a 1/4" male quick connect.  Learn More
