Isokinetic Sampling Equipment - Particulates, Metals, and SVOC

XC-5000 AutoKinetic™ Sampling Console    Get Quote

The Apex Instruments Model XC5000 AutoKineticâ„¢ Series is designed for conducting US EPA Method 5 and associated isokinetic methods. Take the worry out of isokinetic sampling and the human error out of manual data entries and calculations. The new XC-5000 Series is compatible with your existing Method 5 stack sampling components. Report preparation is streamlined with accurate data downloadable to files for easy report preparation  Learn More

XC-5000 AutoKinetic™ Sampling Console    Get Quote

The Apex Instruments Model XC5000 AutoKineticâ„¢ Series is designed for conducting US EPA Method 5 and associated isokinetic methods. Take the worry out of isokinetic sampling and the human error out of manual data entries and calculations.  Learn More

XC-522/572 - Standard Sampling Consoles    Get Quote

The Apex Instruments XC-522/572 are full featured manual meter consoles. Apex Isokinetic Source Sampling Consoles allow the operator to monitor gas velocities, temperatures, pressures and adjust sample flow rates to maintain isokinetic sampling conditions. Designed with convenient display layout for manual data recording. The lightweight X-case and compact design allows for easy onsite maneuverability.  Learn More

XC-522/572 - Standard Sampling Consoles    Get Quote

The Apex Instruments XC-522/572 are full featured manual meter consoles.  Learn More

XE-0523/XE-DAA Method 5 Pump Assemblies    Get Quote

The Lubricated Rotary Vane Pump includes a 5' power cord and two kink-free hoses with non-reversible quick connects. The pump is mounted in our standard durable, rugged X-Case with removable covers a providing easy access for service. The wick style lubricator requires less maintenance than other lubricator systems. All applicable components are rated 120V/60Hz or 240V/50Hz.  Learn More

XE-0523/XE-DAA Method 5 Pump Assemblies    Get Quote

The Lubricated Rotary Vane Pump includes a 5’ power cord and two kink-free hoses with non-reversible quick connects. The pump is mounted in our standard durable, rugged X-Case with removable covers a providing easy access for service.  Learn More

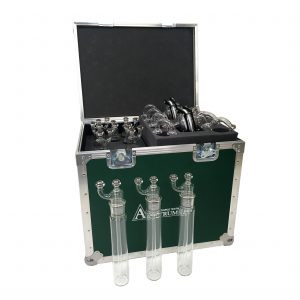

GN-Series - Glassware Sets    Get Quote

Apex Instruments offers a complete line of glassware. Our Standard Glassware features extra heavy borosilicate glass with unground #28 Ball and Socket Joints with O-Ring seals. Cost effective unground joints are more durable than ground joints and the O-Rings provide a tight, leak-free seal without grease.   Learn More

GN-Series - Glassware Sets    Get Quote

Apex Instruments offers a complete line of glassware. Our Standard Glassware features extra heavy borosilicate glass with unground #28 Ball and Socket Joints with O-Ring seals.  Learn More

SB-Series - Modular Sample Case Assemblies    Get Quote

Constructed of lightweight, powder-coated aluminum with insulted aluminum panels. Stainless steel hardware. Internal reinforcements reduce flexing when testing with long probes. Front and rear doors provide greater accessibility. The handle is designed for attaching to a monorail for easy traversing. The 1" probe clamp can be replaced with alternative probe clamps. All single probe filter Ovens will accept standard 2", 3", and 5" filter assemblies.  Learn More

SB-Series - Modular Sample Case Assemblies    Get Quote

Constructed of lightweight, powder-coated aluminum with insulted aluminum panels. Stainless steel hardware. Internal reinforcements reduce flexing when testing with long probes.  Learn More

Umbilical Cables, Heated and Unheated Sample Lines    Get Quote

The lightweight, easily repaired umbilical cable includes one kink-free sample line, 3 kink-resistant polyethylene lines (2 pitot & 1 orsat line), 6 type K thermocouple extensions, and five conductor electrical cable with 4-pin circular connectors. Thermocouple plugs are colored coded. The sample line has 1/2 inch quick connect and the pitot lines have 1/4 inch quick connects standard (3/8 inch optional). U-bag included.  Learn More

Umbilical Cables, Heated and Unheated Sample Lines    Get Quote

The lightweight, easily repaired umbilical cable includes one kink-free sample line, 3 kink-resistant polyethylene lines (2 pitot & 1 orsat line), 6 type K thermocouple extensions, and five conductor electrical cable with 4-pin circular connectors. Thermocouple plugs are colored coded.  Learn More

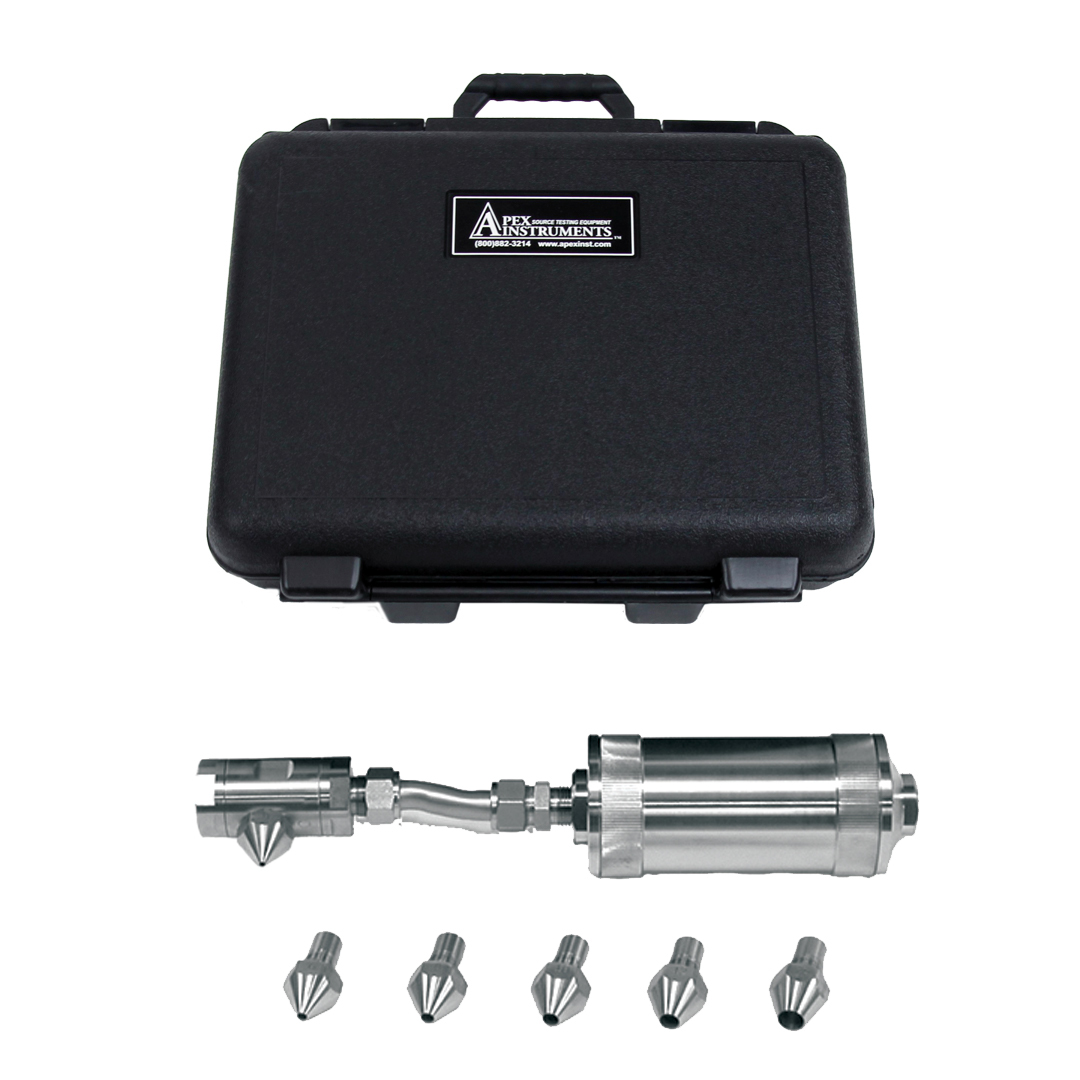

CI-701 Cascade Impactor    Get Quote

The in-stack Cascade Impactor is a seven stage jet filter assembly that removes particles by diameter. It is able to filter from 17 to 0.2 microns in eight size classifications and is unaffected by moisture. The pre-cutter assembly allows the cascade impactor to be used horizontally, meaning it can attach to nearly any standard assembly. The pre-cutter includes six nozzles (1/8", 3/16", 1/4", 5/16", 3/8", and 1/2") to ensure correct flow rates.  Learn More

CI-701 Cascade Impactor    Get Quote

The in-stack Cascade Impactor is a seven stage jet filter assembly that removes particles by diameter. It is able to filter from 17 to 0.2 microns in eight size classifications and is unaffected by moisture.  Learn More

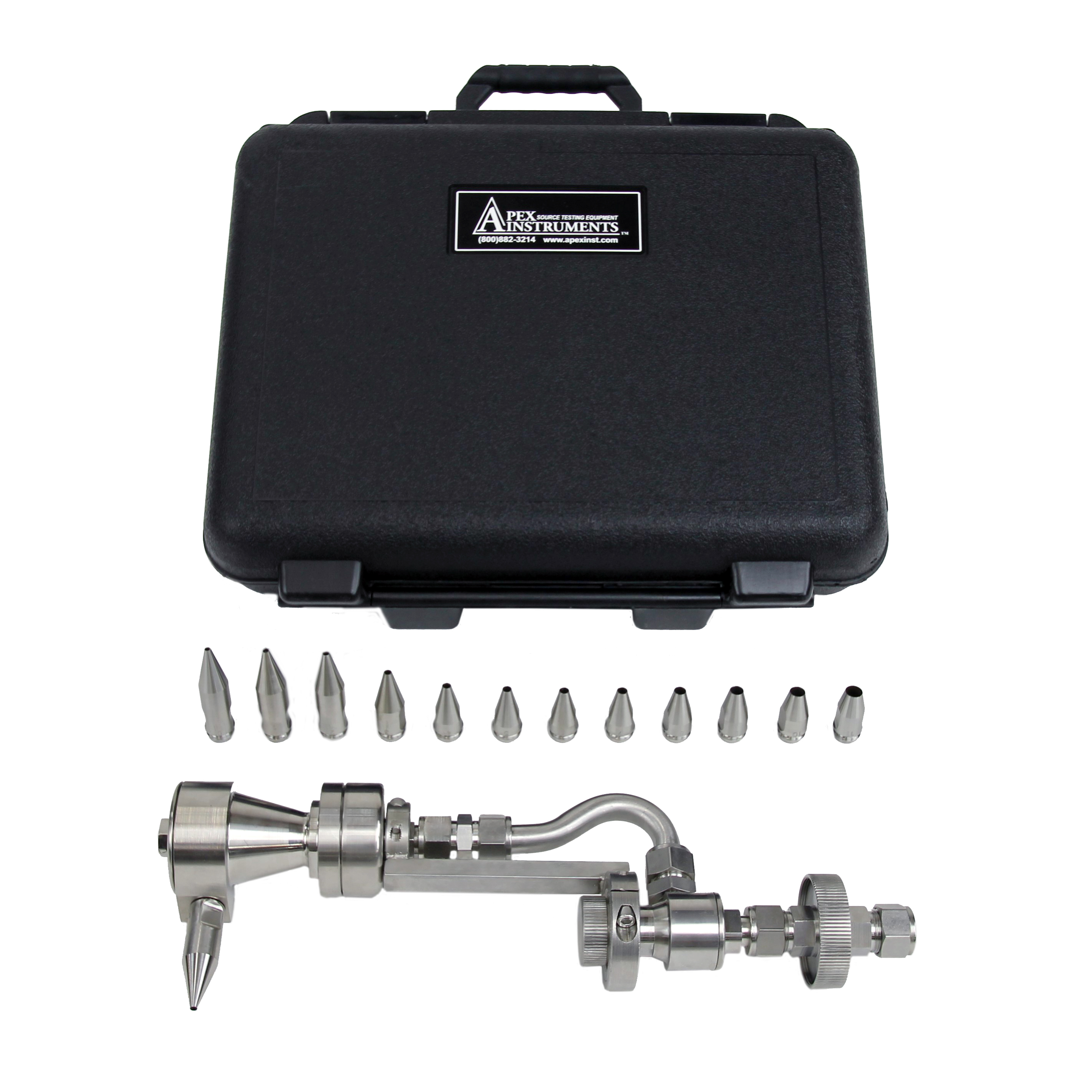

PM2.5-10K Cyclone Kit    Get Quote

Cyclones are designed for in-stack particle sizing applications. The advantages of using cyclones over a cascade impactor is that cyclones have an extremely high particulate collection capacity - up to 10 grams per stage resulting in a bigger sample for accurate gravimetric and chemical analysis, longer sampling times for better averaging and avoids re-loading for each sampling point. Apex recommends cascade impactors for doing particle size research testing.  Learn More

PM2.5-10K Cyclone Kit    Get Quote

Cyclones are designed for in-stack particle sizing applications. The advantages of using cyclones over a cascade impactor is that cyclones have an extremely high particulate collection capacity-up to 10 grams per stage.  Learn More

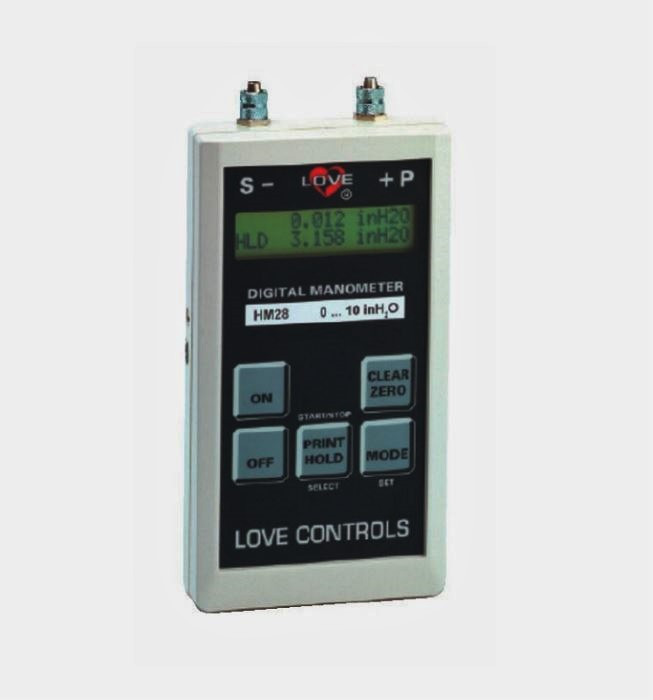

Microprocessor Based Hand Held Manometers    Get Quote

Digital manometers are precision instruments designed to measure a wide range of pressures to a very high accuracy. Features include: measurement in all common pressure ranges, display resolution to .001, differential or relative measurement, two line liquid crystal display, and adjustable auto power off to conserve battery. A certificate of calibration is included with the unit at no additional cost. The DHM28-10 can be used as a secondary calibration standard for your other pressure instrumentation.  Learn More

Microprocessor Based Hand Held Manometers    Get Quote

Digital manometers are precision instruments designed to measure a wide range of pressures to a very high accuracy. The DHM28-10 can be used as a secondary calibration standard for your other pressure instrumentation.  Learn More

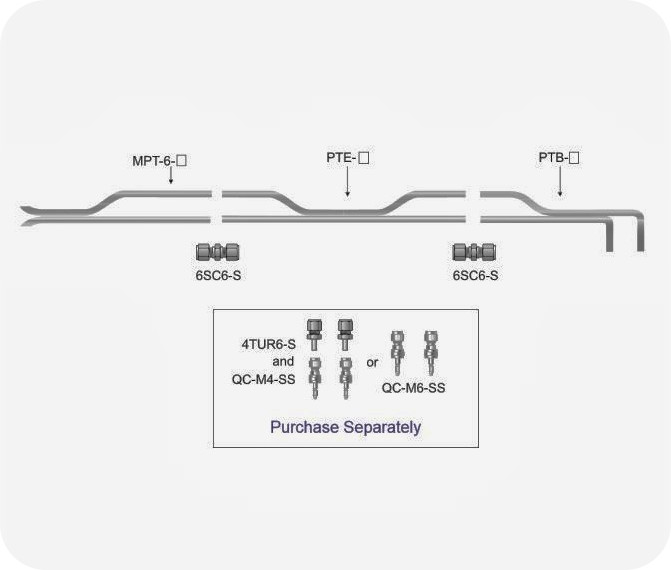

Modular Pitot Tubes and Accessories    Get Quote

Type-S Pitot Tubes are used to measure gas velocities. When the pitot is faced into the gas stream, the pressure difference between the two ports can be used to calculate the velocity pressure. This differential velocity pressure is measured with liquid manometers or electronic pressure transducers. Apex Instruments manufactures Type-S pitot tubes in accordance with the Method 2 design specifications. A wide variety of materials, sizes and configurations are available.  Learn More

Modular Pitot Tubes and Accessories    Get Quote

Type-S Pitot Tubes are used to measure gas velocities. When the pitot is faced into the gas stream, the pressure difference between the two ports can be used to calculate the velocity pressure.  Learn More

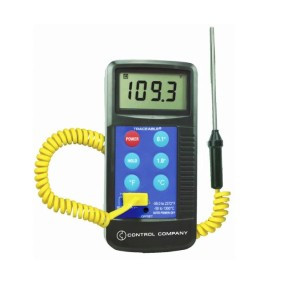

Temperature Thermometers and Transmitters    Get Quote

Type-K Workhorse™ Thermometer provides a sharp readout in dim and very bright light, long battery life (150 to 200 continuous hours), high accuracy, wide temperature range, and a new chip design for an ultra low Price. Recessed front panel adjustable offset allows user to adjust thermometer exactly to a specific temperature, in-house calibration, or a particular sensor for increased accuracy. HOLD button freezes display to capture current reading. Supplied with bench stand. It is compatible with all Type-K probes. Supplied with fast response Type-K probe, bench stand, 9-volt battery, and carrying case. Cable length of 40 inches.  Learn More

Temperature Thermometers and Transmitters    Get Quote

Type-K Workhorse™ Thermometer provides a sharp readout in dim and very bright light, long battery life (150 to 200 continuous hours), high accuracy, wide temperature range, and a new chip design for an ultra low Price. Recessed front panel adjustable offset allows user to adjust thermometer exactly to a specific temperature, in-house calibration, or a particular sensor for increased accuracy. HOLD button freezes display to capture current reading.  Learn More
