Ozone Instruments - O3

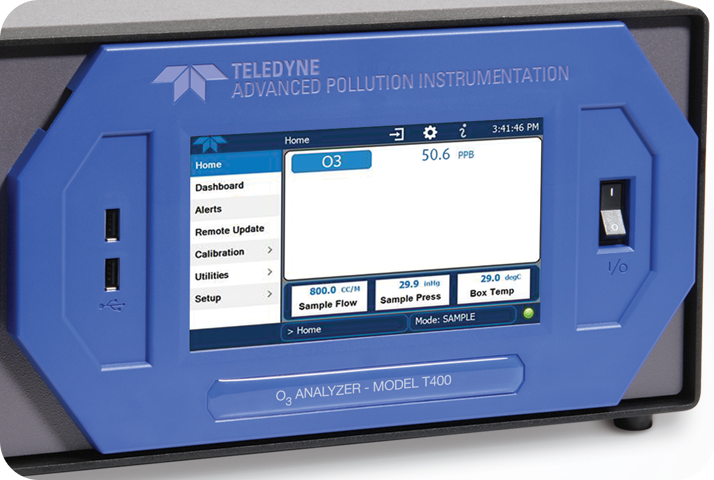

T400 - O3 Analyzer    Get Quote

The Model T400 UV Absorption analyzer uses a system based on the Beer-Lambert law for measuring low ranges of ozone in ambient air. A 254 nm UV light signal is passed through the sample cell where it is absorbed in proportion to the amount of ozone present. Periodically, a switching valve alternates measurement between the sample stream and a sample that has been scrubbed of ozone. The result is a true, stable ozone measurement.
Ranges: 0-100 ppb, 0-1000 ppb.  Learn More

T400 - CO Analyzer    Get Quote

The Model T400 UV Absorption analyzer uses a system based on the Beer-Lambert law for measuring low ranges of ozone in ambient air.
Ranges: 0-100 ppb, 0-1000 ppb.  Learn More

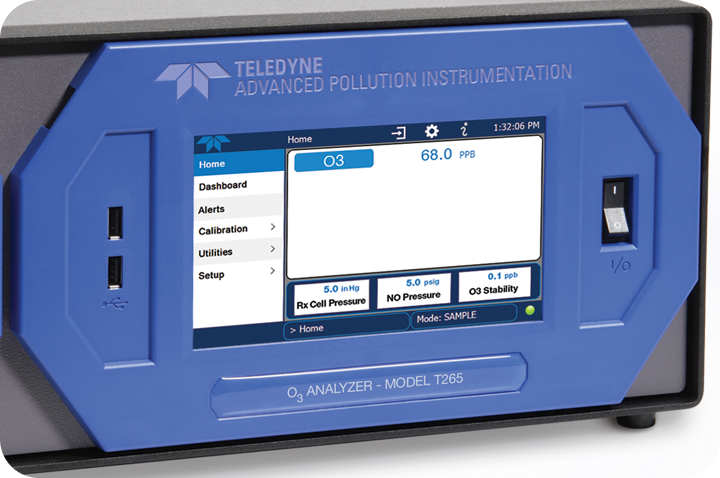

T265 - O3 Analyzer    Get Quote

The Model T265 is the only commercially available US EPA Federal Reference Method for Ambient Ozone Monitoring according to the latest US EPA regulatory rules for O3. The instrument uses Chemiluminescence with Nitric Oxide (NO) as a reagent, making it safe, stable, and effective for all applications. The NO-CL method for Ozone has several advantages over the conventional UV absorption technology, including the avoidance of positive and commonly found interferrents such as VOCs, fine particulates, Mercury, terpenes, ClO2 and others. If these pollutants are present in the atmosphere, it can cause UV absorption analyzers to give an artificially high ozone measurement.
Ranges: 0-100 ppb to 0-2,000 ppb.  Learn More

T265 - O3 Analyzer    Get Quote

The Model T265 is the only commercially available US EPA Federal Reference Method for Ambient Ozone Monitoring according to the latest US EPA regulatory rules for O3. The instrument uses Chemiluminescence with Nitric Oxide (NO) as a reagent, making it safe, stable, and effective for all applications.
Ranges: 0-100 ppb to 0-2,000 ppb  Learn More

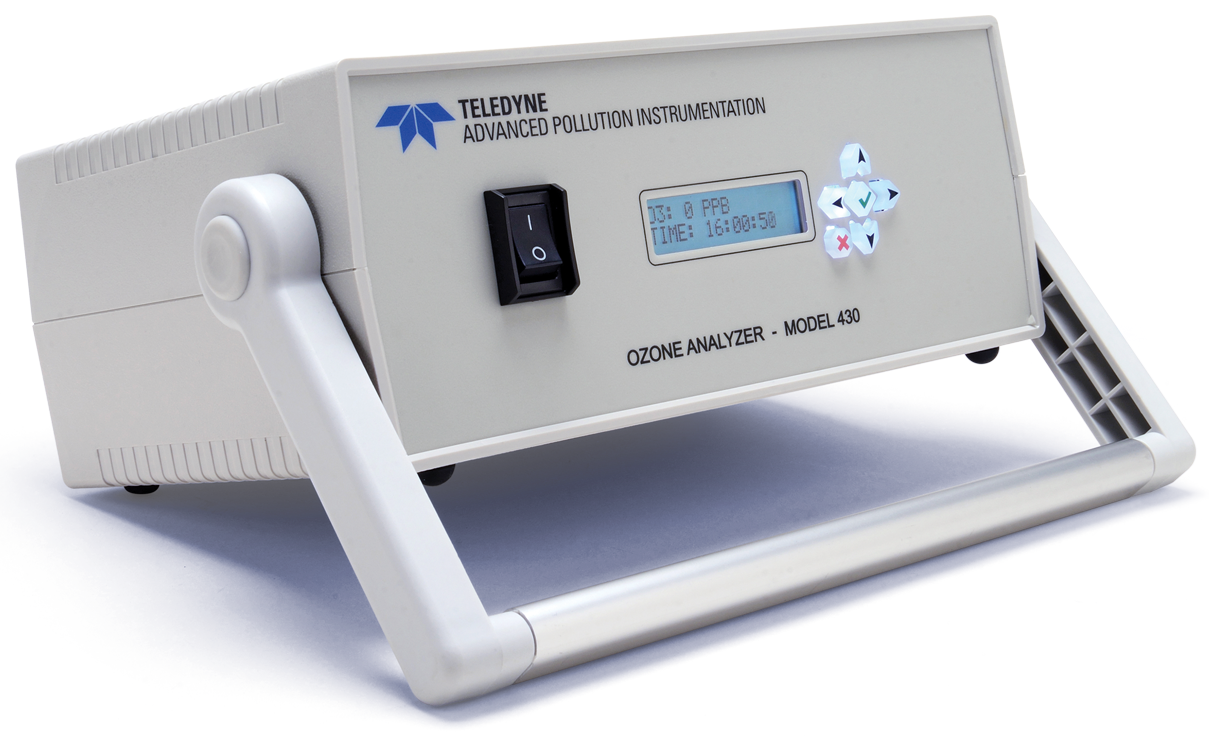

430 - O3 Analyzer    Get Quote

Teledyne API is pleased to offer the Model 430 Compact O3 Analyzer. The Model 430 uses the proven UV absorption principle, producing accurate and stable O3 measurements. The robust design and low power consumption makes it ideal for monitoring applications that require long autonomy periods such as rural and remote monitoring, saturation studies, and atmospheric research. The small footprint and quiet operation make it extremely useful for indoor air quality, surveying, and industrial hygiene applications. An optional battery pack provides up to 14 hrs. of run time on a full charge.
Ranges: 0 - 100 ppb, 0-20,000 ppb.  Learn More

430 - O3 Analyzer    Get Quote

Teledyne API is pleased to offer the Model 430 Compact O3 Analyzer. The Model 430 uses the proven UV absorption principle, producing accurate and stable O3 measurements. The robust design and low power consumption makes it ideal for monitoring applications that require long autonomy periods such as rural and remote monitoring, saturation studies, and atmospheric research.
Ranges: 0 - 100 ppb, 0-20,000 ppb.  Learn More

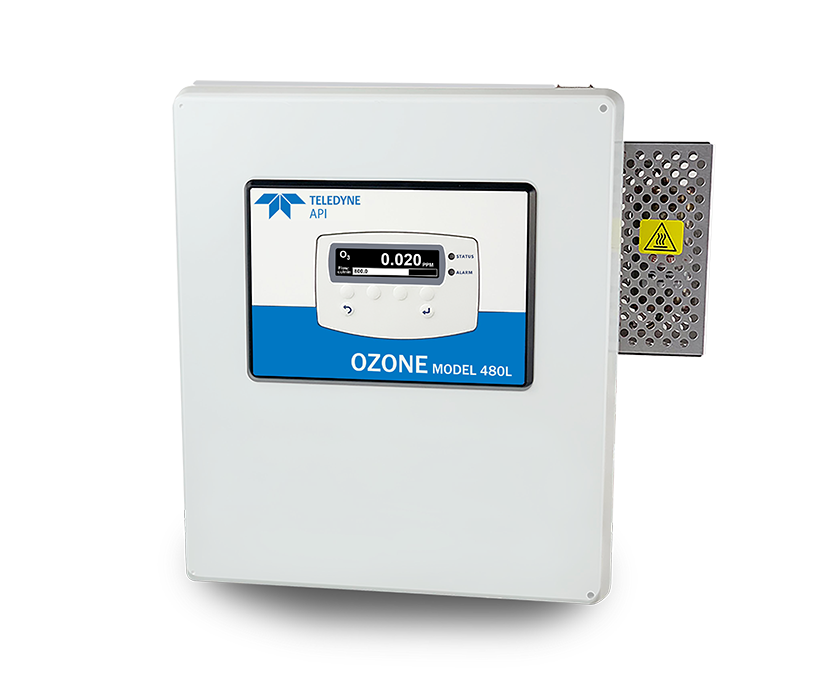

480L - Industrial Hygiene Ozone Analyzer    Get Quote

The Model 480L UV Photometric Ozone Monitor is an extremely stable analyzer, ideal for critical low-level ppm safety and process applications. Its calibration is NIST traceable and the included pressure and temperature compensation ensure high accuracy under all conditions. The Model 480L is housed in a splashproof NEMA 4X wall mount enclosure and can be purchased either as a single stream unit or as a multi-channel unit capable of monitoring up to six individual sample streams.
Ranges: 0-1 ppm to 0-500 ppm  Learn More

480L - Industrial Hygiene Ozone Analyzer    Get Quote

The Model 480L UV Photometric Ozone Monitor is an extremely stable analyzer, ideal for critical low-level ppm safety and process applications. Its calibration is NIST traceable and the included pressure and temperature compensation ensure high accuracy under all conditions.
Ranges: 0-1 ppm to 0-500 ppm  Learn More

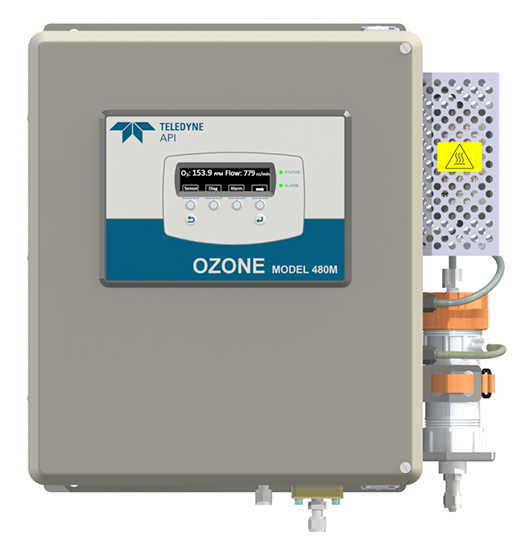

480M - Process Ozone Monitor    Get Quote

The Model 480M is a state-of-the-art medium range ozone monitor. The design has been specifically optimized for applications requiring the measurement of ozone at near-ambient pressure, such as water treatment contactor off-gas measurement. The Model 480M provides accurate and stable readings over long time periods and was designed with the user in mind. The modular design allows for easier field serviceability. The Model 480M is housed in a splash-proof NEMA 4X wall mount enclosure.
Ranges: 0-1,000 ppm to 0-10,000 ppm  Learn More

480M - Process Ozone Monitor    Get Quote>

The Model 480M is a state-of-the-art medium range ozone monitor. The design has been specifically optimized for applications requiring the measurement of ozone at near-ambient pressure, such as water treatment contactor off-gas measurement. The Model 480M provides accurate and stable readings over long time periods and was designed with the user in mind.
Ranges: 0-1,000 ppm to 0-10,000 ppm  Learn More

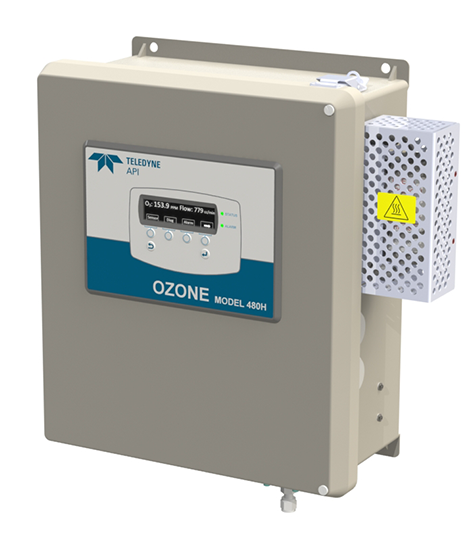

480H - Process Ozone Monitor    Get Quote

The Model 480H is a state-of-the-art high concentration ozone monitor. The 480H provides accurate and stable readings over long time periods and was designed with the user in mind. The modular design allows for easier field serviceability. The Model 480H is housed in a splash-proof NEMA 4X wall mount enclosure. The sensor module contained in the Model 480H uses detectors with a very narrow band of spectral sensitivity, eliminating the need for UV band pass filters which are subject to deterioration by UV or humidity. Two detectors are used: one for the ozone measurement, and the other to compensate for changes in UV source intensity.
Ranges: 0-5% w/w to 0-25% w/w  Learn More

480H - Process Ozone Monitor    Get Quote

The Model 480H is a state-of-the-art high concentration ozone monitor. The 480H provides accurate and stable readings over long time periods and was designed with the user in mind. The modular design allows for easier field serviceability.
Ranges: 0-5% w/w to 0-25% w/w  Learn More

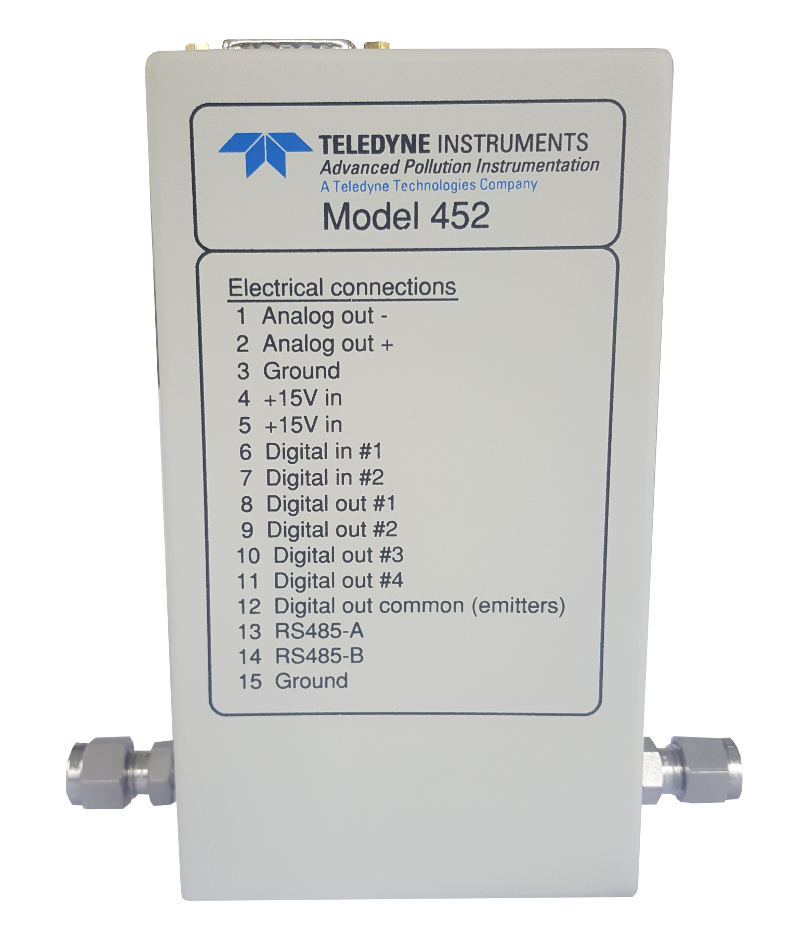

452 - Process Ozone Sensor    Get Quote

The Model 452 is a microprocessor based gas sensor for measuring high concentrations of ozone in oxygen or air with accuracy and dependability. The measurement principle is based on the absorption of UV light at 254nm. Readings are available in % by weight, or grams/Normal cubic meter. Temperature and pressure compensation up to 3 Bar Absolute is a standard feature.
Ranges: 0-5% to 0-20% w/w  Learn More

452 - Process Ozone Sensor    Get Quote

The Model 452 is a microprocessor based gas sensor for measuring high concentrations of ozone in oxygen or air with accuracy and dependability. The measurement principle is based on the absorption of UV light at 254nm. Readings are available in % by weight, or grams/Normal cubic meter.
Ranges:   Learn More

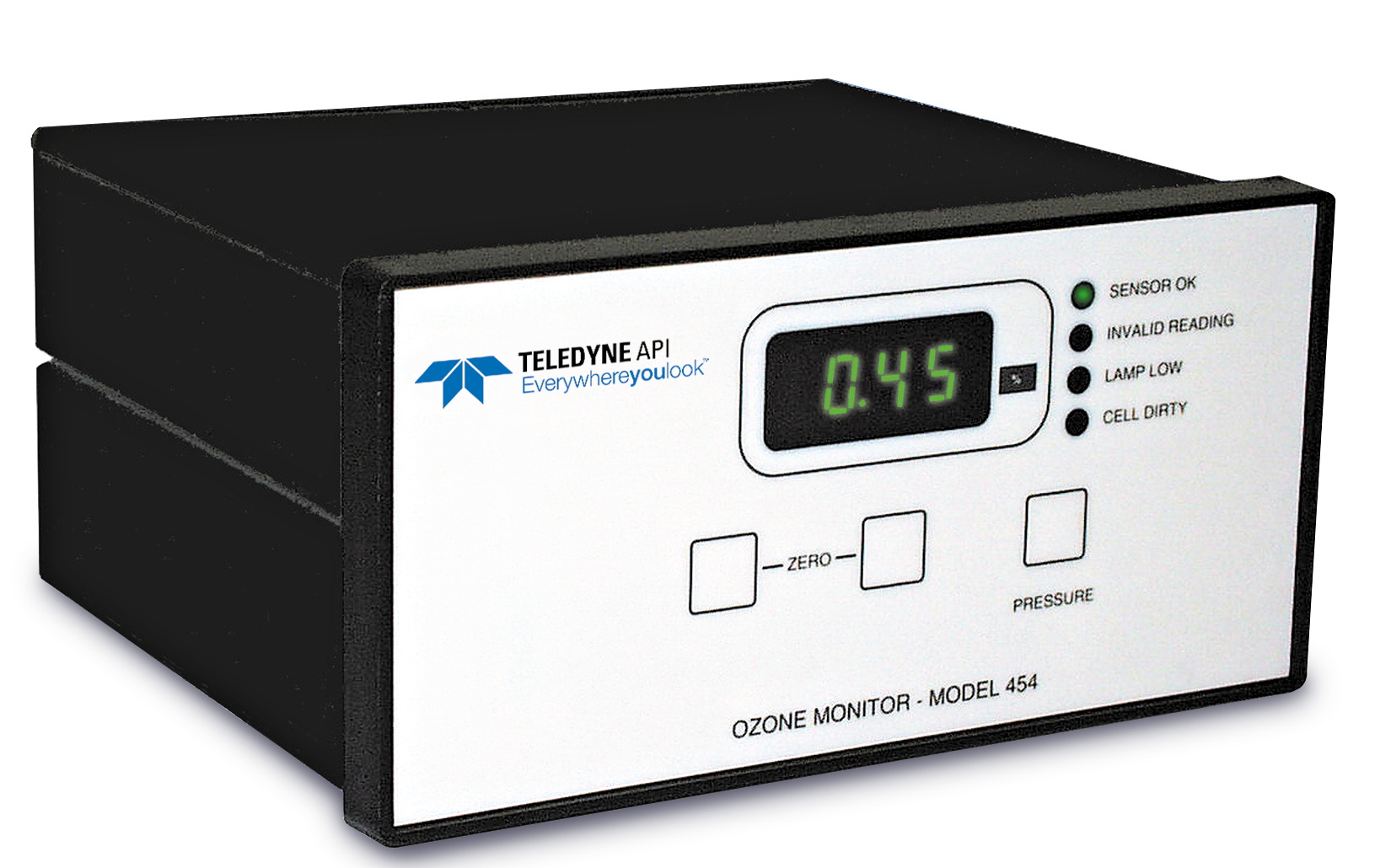

454 - Process Ozone Monitor    Get Quote

The Model 454 is a microprocessor based gas monitor for measuring mid to high concentrations of ozone in oxygen or air. Available in a standard DIN panel mount configuration with a 4-digit LED display, the compact design provides ease of mounting and installation. The measurement principle is based on the absorption of UV light at 254nm. As the sample containing ozone flows through the absorption cell, it is exposed to UV light at the 254nm wavelength. The amount of absorption by ozone is measured by a narrow bandwidth UV detector.
Ranges: 0-5% w/w to 0-25% w/w, 0-100 g/Nm3 to 0-500 g/Nm3  Learn More

454 - Process Ozone Monitor    Get Quote

The Model 454 is a microprocessor based gas monitor for measuring mid to high concentrations of ozone in oxygen or air. Available in a standard DIN panel mount configuration with a 4-digit LED display, the compact design provides ease of mounting and installation.
Ranges: 0-5% w/w to 0-25% w/w, 0-100 g/Nm3 to 0-500 g/Nm3  Learn More

465L - Process Ozone Monitor    Get Quote

The Model 465L UV Photometric Ozone Monitor is an extremely stable analyzer, ideal for critical low-level ppm safety and process applications. Its calibration is NIST traceable and the included pressure and temperature compensation ensure high accuracy under all conditions. The Model 465L is available in a 19" rack mount or NEMA 4X wall mount enclosure and can be purchased either as a single stream unit or as a multi-channel unit capable of monitoring up to six individual sample streams.
Ranges: 0-1 ppm to 0-500 ppm.  Learn More

465L - Process Ozone Monitor    Get Quote

The Model 465L UV Photometric Ozone Monitor is an extremely stable analyzer, ideal for critical low-level ppm safety and process applications. Its calibration is NIST traceable and the included pressure and temperature compensation ensure high accuracy under all conditions.
Ranges: 0-1 ppm to 0-500 ppm.  Learn More

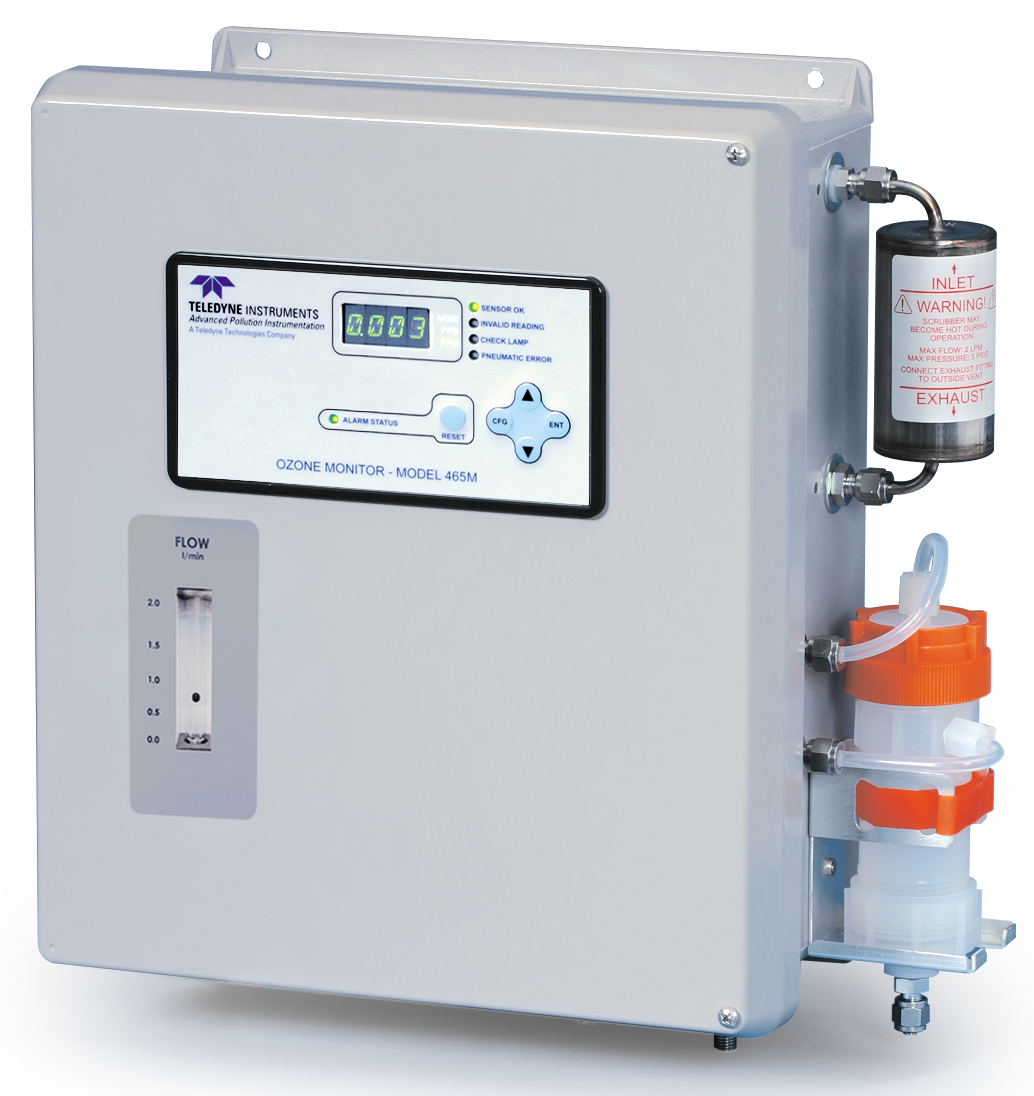

465M - Process Ozone Monitor    Get Quote

The Model 465M is a microprocessor based medium range ozone monitor for measuring process ozone concentrations in water treatment, food processing, and research applications. The design has been specifically optimized for applications requiring the measurement of ozone at near-ambient pressure such as water treatment contactor off-gas measurement. The Model 465M has been designed to give accurate and stable readings over long time periods with little or no maintenance or calibration. The Model 465M is available in a NEMA 4X wall mount enclosure.
Ranges: 0-1000 ppm to 0-10,000 ppm  Learn More

465M - Process Ozone Monitor    Get Quote

The Model 465M is a microprocessor based medium range ozone monitor for measuring process ozone concentrations in water treatment, food processing, and research applications. The design has been specifically optimized for applications requiring the measurement of ozone at near-ambient pressure such as water treatment contactor off-gas measurement.
Ranges: 0-1000 ppm to 0-10,000 ppm.  Learn More

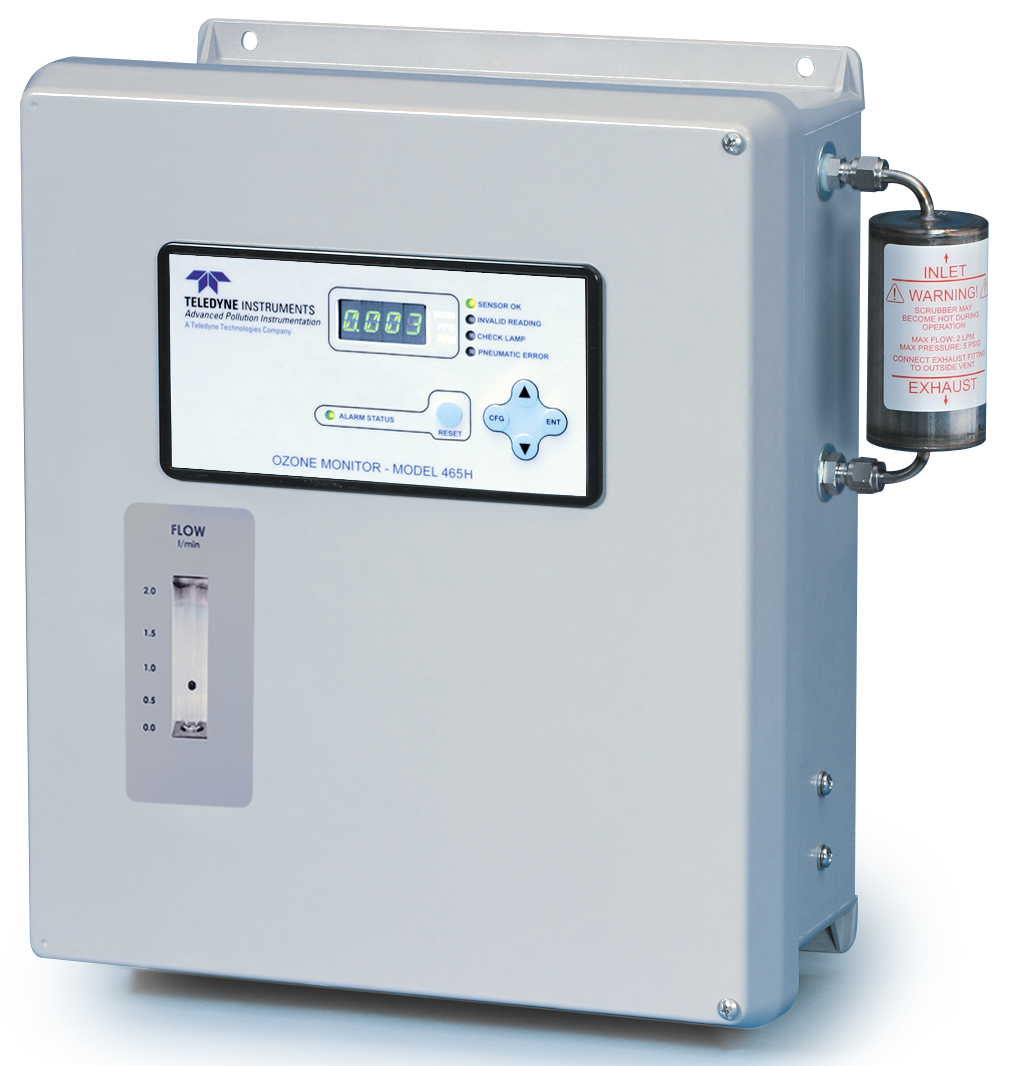

465H - Process Ozone Monitor    Get Quote

The Model 465H is a microprocessor based high concentration ozone monitor for measuring ozone in process gas streams in water treatment, food processing, and research applications. The 465H has been designed to give accurate and stable readings over long time periods with little or no maintenance or calibration. The Model 465H is available in a NEMA 4X wall mount enclosure. The sensor module contained in the Model 465H uses detectors which have a very narrow band of spectral sensitivity, eliminating the need for UV band pass filters which are subject to deterioration by UV or humidity.
Ranges: 0-5 to 0-25% w/w.  Learn More

465H - Process Ozone Monitor    Get Quote

The Model 465H is a microprocessor based high concentration ozone monitor for measuring ozone in process gas streams in water treatment, food processing, and research applications. The 465H has been designed to give accurate and stable readings over long time periods with little or no maintenance or calibration. The Model 465H is available in a NEMA 4X wall mount enclosure.
Ranges: 0-5 to 0-25% w/w.  Learn More
